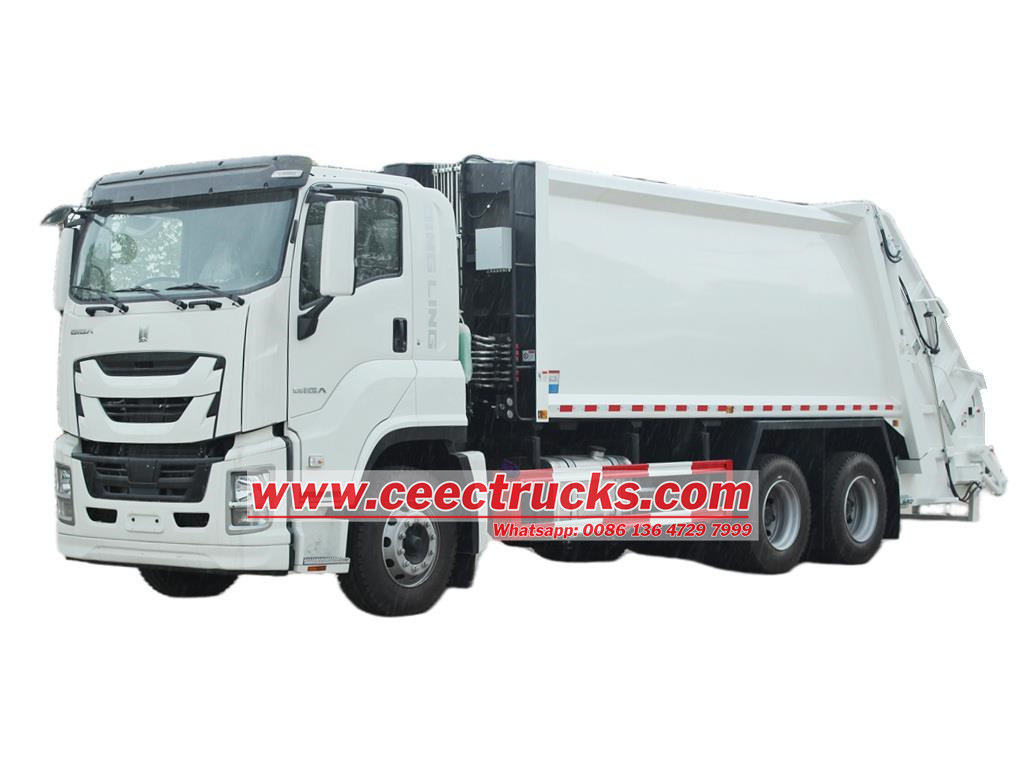

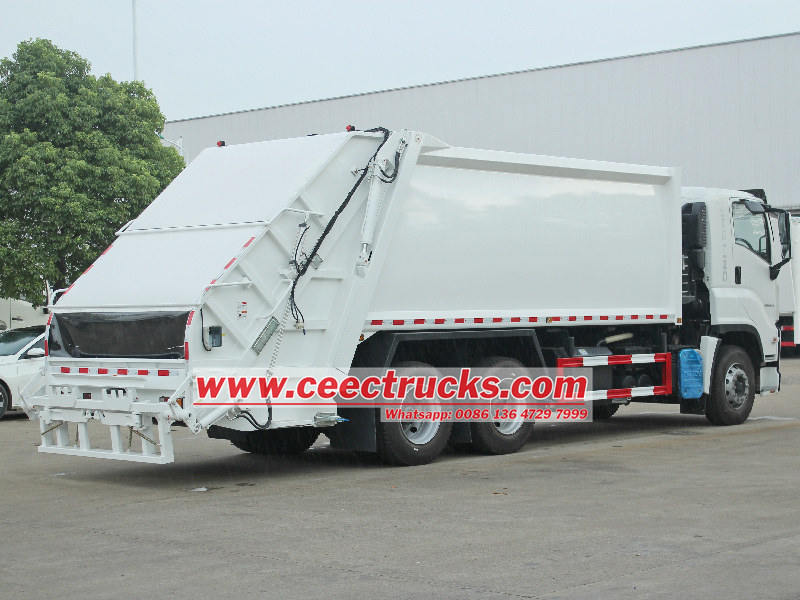

2025 year newly ISUZU GIGA 20cbm garbage compactor truck, modify based on Japanese ISUZU GIGA model 6x4 left hand drive truck chassis, equipped with ISUZU 6UZ1-TC model 280KW / 380HP diesel engine, FAST model 12-shift transmission gear with 12 forward and 2 reverse. CAN-BUS control system for easy operation. All painting and logos based on customers requirement.
Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
40 DaysWork capacity:
20CBMTruck model:
CEEC5258ZYSEngine power:
280HPEngine type:
ISUZU 6UZ1-TCAxle drive:
6X4, LHDGear box:
FAST 12F & 2RRemarks:
Customized to loading 1100L binsISUZU GIGA rear loader garbage truck is a special sanitation vehicle based on Japanese technology ISUZU GIGA heavy truck chassis and equipped with a rear loading compression device, including Rear hopper, Slide Plate, Scraper, Push Plate etc. Isuzu solid waste compactor garbage truck realizes the collection, compression, transportation and unloading of garbage through hydraulic system and automatic control technology, and is widely used in scenes such as urban sanitation, community cleaning and garbage transfer stations. ISUZU GIGA garbage compactor truck is a high-performance garbage disposal vehicle designed based on ISUZU GIGA 6x4 truck chassis, can be mounted with 6UZ1 diesel engine with power 340HP, 380HP and emission EURO 6 standard with 9839cc. Also can be mounted with 6WG1 diesel engine with power 420HP, 460HP 520HP and emission EURO 6 standard with 15681cc. Isuzu heavy duty rear loader compactor trucks mainly used for the collection, compression and transportation of urban garbage. It combines the strong load bearing capacity of ISUZU GIGA chassis and the advanced technology of rear-loading compression garbage truck, and has the characteristics of high efficiency, environmental protection and durability.
● China best ISUZU GIGA rear loader garbage truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● Promptly delivery. any order is welcome.
● 24 month quality guarantee term
Advanced features for Isuzu garbage compactor truck GIGA 26 yard rear loader:
Isuzu Garbage compactor truck is composed of hermitical garbage box based on T420 material, with thickness for side and floor, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing repollution. When arriving at destination, the garbage can be dumped completely. Isuzu rear loader compactor truck is ideal solution for solid waste collection.
★ Adopt world-class Japanese ISUZU brand GIGA 6X4 Chassis, High power and Fuel efficiency, Reliability, Uptime
★ All Structural made of High Strength Steel T420 material
★ CAN-BUS electric control and Hydraulic control for easy operation
★ Matched with ISO9001 and CCC quality
★ Optional rear loading device for garbage loading
★ Optional ISUZU GIGA Chassis 4x2, 6x4, 8x4 and engine 6UZ1 and 6WG1
Product Parameters for ISUZU GIGA rear loader truck
| Truck Specification | ||
| General | Model | CEEC5250ZYS |
| Chassis Brand | ISUZU | |
| Overall Dimension | Appro. 10500*2500*3200 (mm) | |
| GVW | Appro. 25000 (kg) | |
| Truck Tare Weight (kg) | Appro. 13400 (kg) | |
| Garbage Container Capacity | Appro. 20CBM | |
| Drive Type | 6x4, Left Hand Drive with power assisted steering | |
| Drive Speed | ≤90Km/h | |
| Cab | Type | One and a half row cab, forward control type, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver seat |
| No of Seats | 3 persons allowed, including driver, with safety belts | |
| Number of Doors | 2 | |
| Air Conditional | With air conditional | |
| Electric System | 24V | |
| Audio System | FM/AM radio, CD/USB player | |
| Engine | Brand | ISUZU |
| Model | 6UZ1-TCG61 | |
| Fuel Type | Diesel Fuel | |
| Emission Standard | Europe 6 | |
| Type | Water-cooled four-stroke, direct injection, turbocharged & intercooled | |
| Nos of Cylinder | 6 | |
| Cylinders Arrangement | In-line | |
| Max Output Power | 280 (kw) / 380 (HP) | |
| Exhaust | 6557(ml) | |
| Max output power/rated speed | 180/2300 (hp/rpm ) | |
| Max torque/rotate speed | 650/1400 (N.m/rpm) | |
| Fuel System | Fuel Tank Capacity | 200Ltr |
| Material | Aluminium fuel tank | |
| Gear Box | Model | FAST |
| Type | Manual | |
| Forward Speeds | 12 | |
| Reverse Speed | 2 | |
| Synchronizer | Yes | |
| Forward Ratios | 12.1 / 9.41 / 7.31 / 5.71 / 4.46 / 3.48 / 2.71 / 2.11 / 1.64 / 1.28 / 1 / 0.78 | |
| Reverse Ratio | 11.56 / 2.59 | |
| Clutch | Plate's Diameter | ¢430mm |
| Operation System | Hydraulic control with air booster, pushing | |
| Bridge | NOs of Axle | 3 |
| Front Alex | Elliot type, I beam section | |
| Front axle load-bearing (kg) | 7500 | |
| Rear Alex | Single reduction | |
| Rear axle load-bearing (kg) | 13000+13000 | |
| Suspension | Front | 7- Leaf spring with shock absorber |
| Rear | (7/10)-leaf spring | |
| Electric System | Voltage | 24V |
| Battery Capacity (A.h) | 150X2 | |
| Braking System | Full air brake system, split pneumatic circuit , parking spring brake acting on rear axles, exhaust brake | |
| Tire | Type | 12R22.5 |
| Nos | Total 7 pieces, including one spare tire | |
| Solid Waste Compactor Upper-Body Specification | |||
| Garbage Container | Volume | 20CBM | |
| Material | T420 | ||
| Thickness (side/bottom) | 5mm/5mm | ||
| Hydraulic Pump | 1 set | ||
| Multi-way Valve | 1 set | ||
| Flap Cylinder | 2 set | ||
| Lifting Cylinder | 2 set | ||
| Scraper Cylinder | 2 set | ||
| Skateboard Cylinder | 2 set | ||
| Push plate Cylinder | 1 set | ||
| The Electromagnetic Valve | 2 set | ||
| Dirty Tank Volume | 200L | ||
| Filing Time | 10-16s | ||
| Filling Cycle Time | 20-28s each time | ||
| Discharge Type | Flat-pushing and Dumping | ||
| Dumping Time | 15-20s | ||
| Hydraulic Pressure | 18Mpa | ||
| Controlling Way | Manually and Electrical control | ||
Isuzu GIGA rear loader garbage truck components
ISUZU GIGA rear loader compression garbage truck is an efficient, environmentally friendly and durable garbage disposal equipment, combining the reliability of ISUZU GIGA 6x4 truck chassis and the advanced nature of rear-loading compression technology, and is widely used in urban sanitation operations. Its efficient compression capacity, automated operation and environmentally friendly design make it an important tool for modern garbage disposal.
Compactor Upper Body Kit component:
Compactor Body: welded with high-strength steel plates (such as T420 or Q550), the bin is designed as a streamlined or rectangular structure, with a flat bottom and arc-shaped top and side surfaces, which is both lightweight and high-strength, with a compression ratio of 1:2.5 or more1:3 or 1:4.

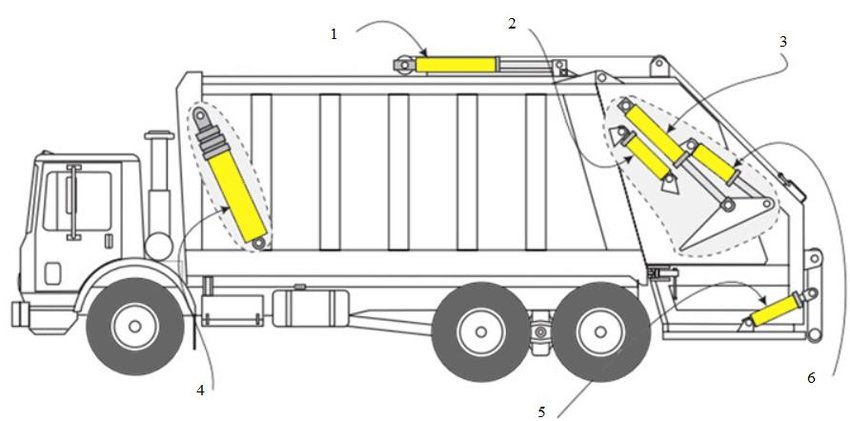

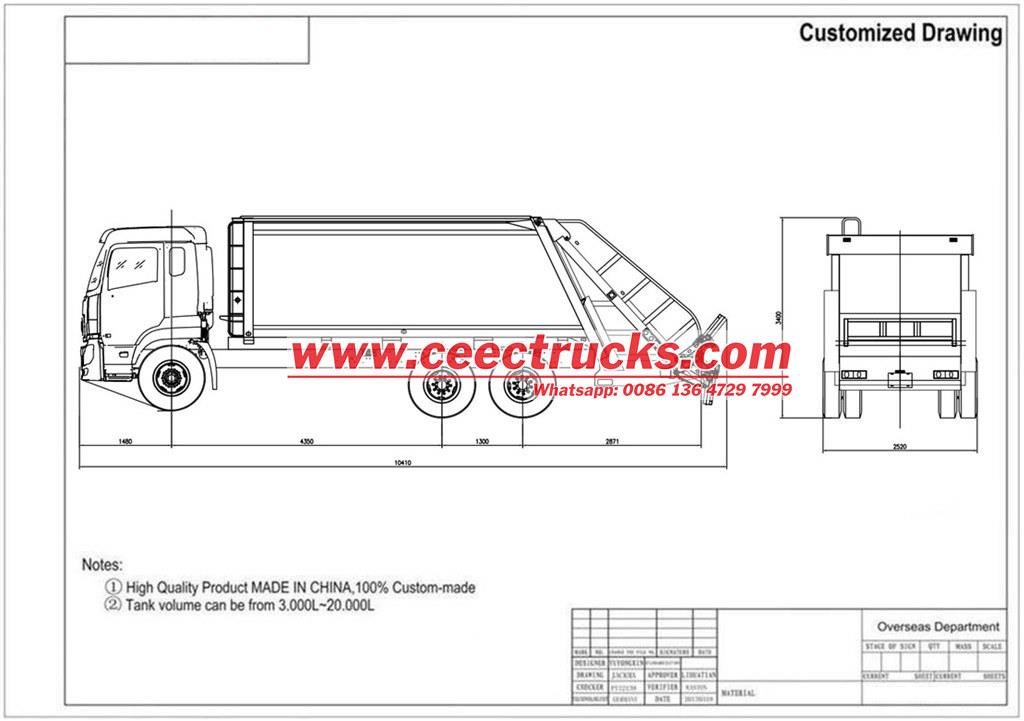

Push Plate and Compression System: including components such as slide plates, scrapers, and push shovels. The slide plates drive the scrapers to crush and compress the garbage in both directions, and the push shovels evenly distribute the garbage through back pressure to ensure that the bin is fully loaded. And below 3D drawing help you better understand what is rear loader truck drawing

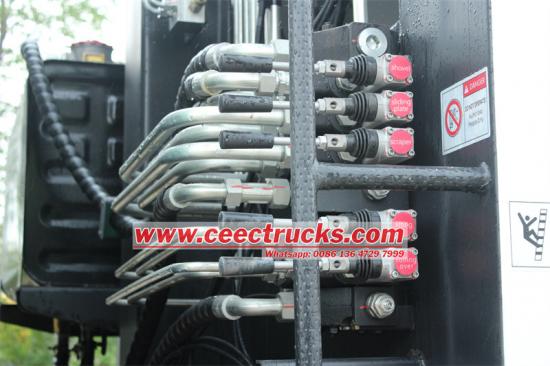

Hydraulic system: which is the core components of the ISUZU GIGA solid waste compactor truck, including all hydraulic device, such as oil pumps, multi-way reversing valves, Hypres cylinders, etc., the system pressure is usually 16-24Mpa, supporting efficient compression and unloading operations.
Electronic control system: Customized CAN-BUS system or integrated with imported PLC (programmable controller) to achieve automatic control, with emergency braking, explosion-proof valves and other safety protection functions
★ Japanese ISUZU diesel engine, super powerful
★ Expert for producing garbage compactor truck over 10 years with good reputation
★ Carbon steel material T420
★ 12 months free fast moving spare parts
★ All English version control box, panel, and owner's manual, for easy understanding
★ Training service for compression garbage trucks
CEEC trucks 5000 square meters workshop for garbage compactor trucks.
