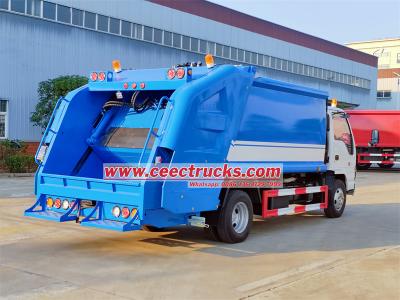

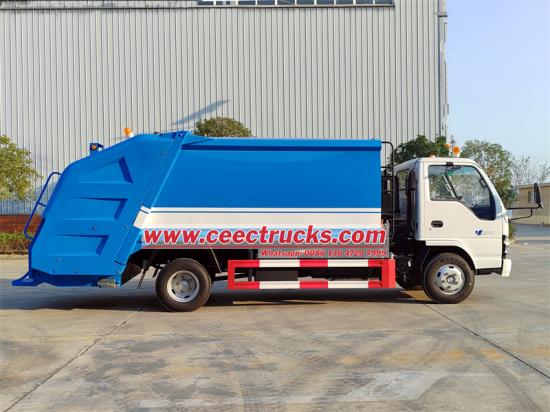

Isuzu NKR refuse compactor garbage truck

This ISUZU NKR light-duty garbage compactor truck is an efficient and practical urban sanitation model with excellent technical performance and practicality. The vehicle is equipped with a 4HK1CN6LB engine with a displacement of 2.99L and a maximum power of 120 horsepower. It adopts a 4-cylinder in-line turbocharged water-cooled design, and the power system is reliable and stable. The Isuzu garbage truck adopts a 4*2 drive configuration, a total mass of 7300kg, and a wheelbase of 3815mm. It is a light truck that is convenient for garbage disposal in the streets and alleys of the city. The garbage bin has a capacity of 8 cubic meters and adopts an arc design. The bottom and side panels are both 4mm thick Q235 special steel. The overall molding process ensures structural strength.

Lead Time:
60 Days
Work capacity:
8cbm
Truck model:
CEEC5073YSLJC
Engine power:
120HP
Engine type:
4KH1CN6LB
Axle drive:
4x2，LHD
Gear box:
MSB 5-speed,manual
Remarks:
Isuzu ELF chassis,3 operation modes

Inquiry now

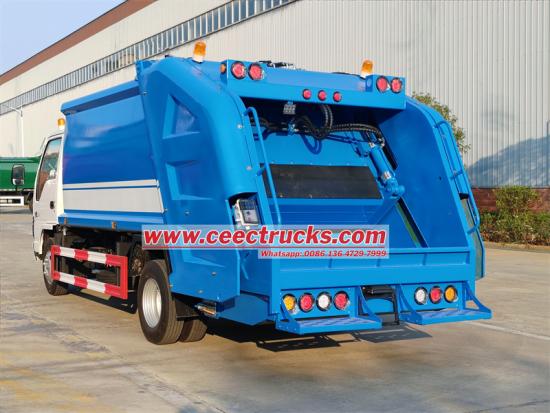

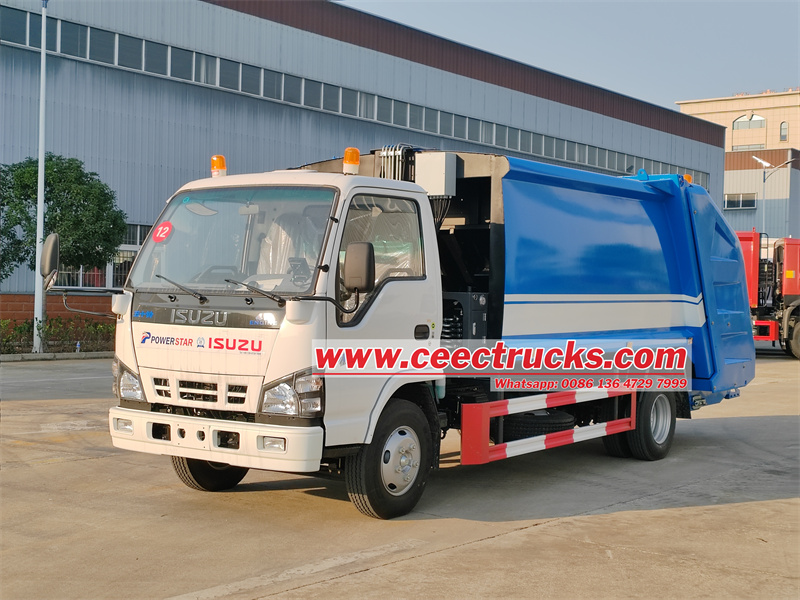

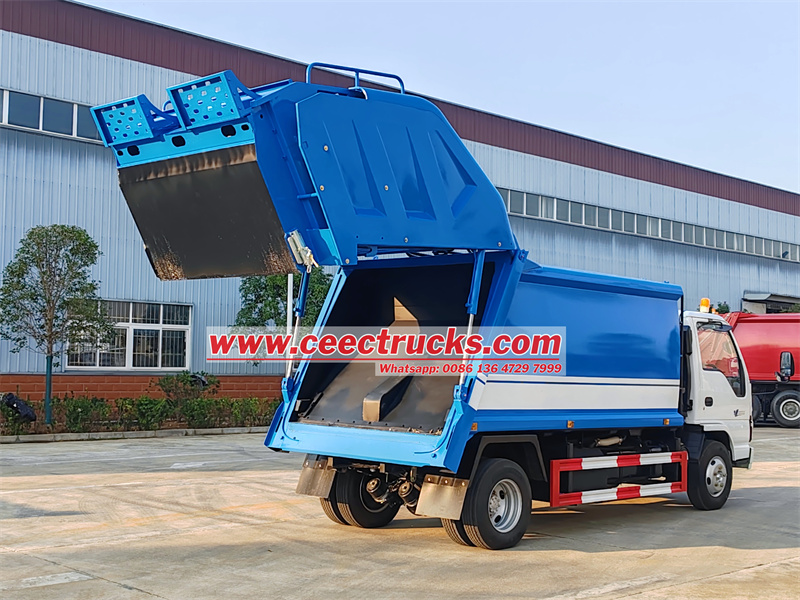

ISUZU NKR 8CBM garbage compactor truck

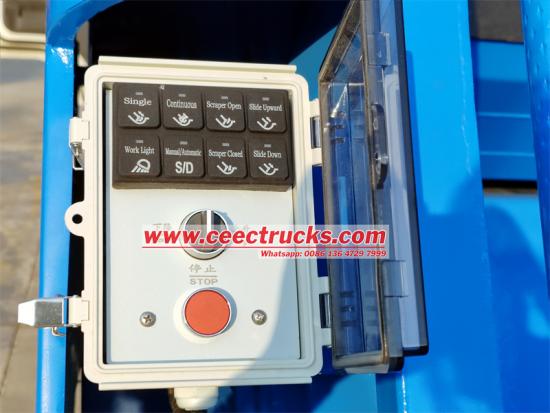

The compression system compression ratio is 1:3.4, the maximum pressure of the hydraulic system is 20MPa, and it is equipped with a PLC control system, which can be operated automatically or manually. The single loading and unloading cycle time is short, loading ≤40 seconds, unloading ≤45 seconds, and the efficiency is remarkable. It is equipped with a variety of safety features such as emergency stop button, warning lights, fire extinguisher, etc., and can be equipped with rear view camera and reversing alarm system to meet different operation requirements. With a maximum speed of 90km/h and a 100L fuel tank, the ISUZU NKR rear loader garbage truck is suitable for urban sanitation operations.

Specification:

ISUZU NKR 8CBM garbage compactor truck

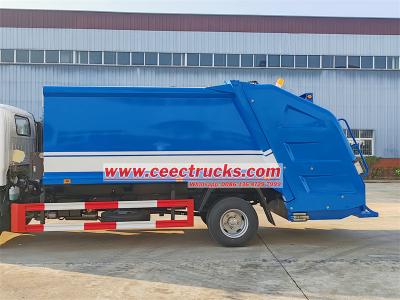

ISUZU NKR rear loader Truck
Model	CEEC5073YSLJC
Driving Type	4*2
Gross Weight	7300kg
Related Loading Mass	4900kg
Curb Weight	5300kg
Dimension	710022502530mm
Wheelbase	3815(mm)
Front Axle Loading Capacity	4300kg
Rear Axle Loading Capacity	7500kg
Approach angle	20°
Departure angle	13°
Tire	700R16
Max Speed	90 (Km/h)
Fuel tank	70L
Engine parameters
Model	4HK1CN6LB
Horse Power	120 hp
Displacement	2.99L
Emission Standard	Euro 6
Type	4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling)
Gear Box
Gear Box	MSB 5 forward and 1 reverse
Superstructure Parameter
Tank Volume	8 CBM
Tank Shape	Arc-shape
Tank Material thickness	Bottom:4mm Side:4mm
Tank manufacturing process	Whole board manufacturing
Tank Material	Q235 (Special Steel)
Compression Ratio	1 : 3.4
The effective volume of the bucket	≥0.8m³
Loading cycle time	≤40 s
unload garbage time	≤45s
control method	Automatic,Manual
Maximum pressure of hydraulic system	20MPa
Control System	PLC
Control panel	English or Your language
Engine power control	Fully automatic control
standard accessories	Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……

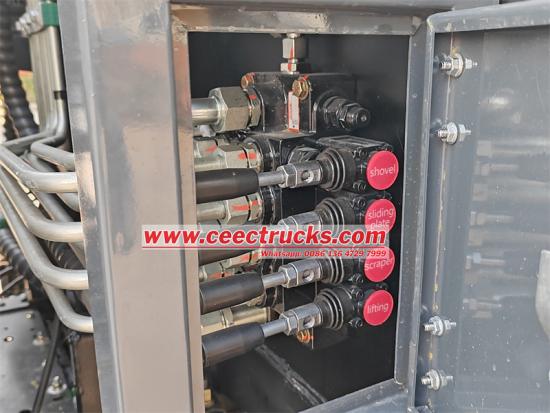

Optional	Back alarm and Camera can be equipped. Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100L bins with bin lifter can be choose.

Advantage:

ISUZU NKR chassis has many significant advantages in the modification of garbage compression trucks:

1. Chassis structure advantages: ISUZU NKR chassis is known for its excellent structural strength and lightweight design. The frame is made of high-strength steel, with good overall rigidity and exquisite welding technology, providing a solid foundation for modification. The design of wheelbase 3815mm makes the center of gravity of rear loader garbage truck more stable, which is particularly suitable for installing larger garbage compression boxes and making better use of space.

2. Power system matching: 4HK1CN6LB engine is the boutique powertrain of Isuzu light vehicle series. The output of 120 horsepower is at the leading level in the same class, the torque output is stable, and the matching of engine and gearbox is excellent. This power characteristic enables ISUZU NKR garbage rear loader truck to maintain good acceleration performance and climbing ability even when fully loaded under complex urban road conditions.

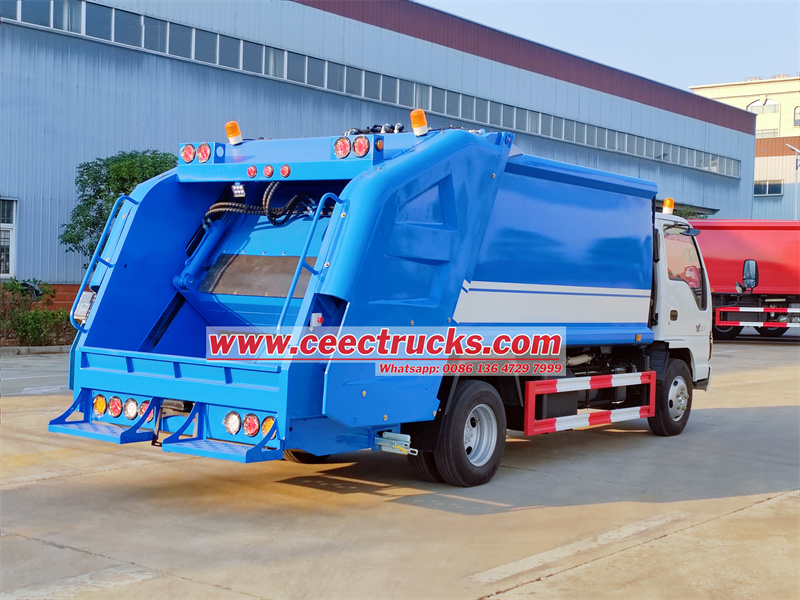

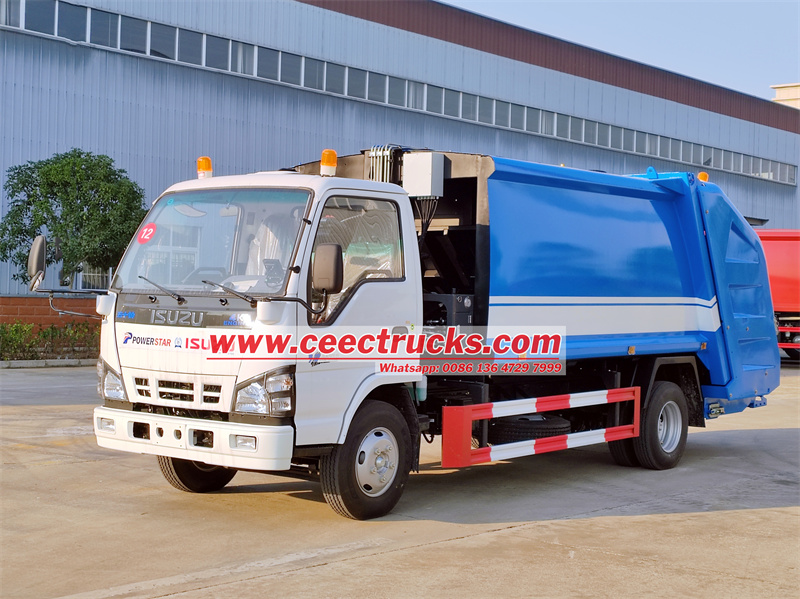

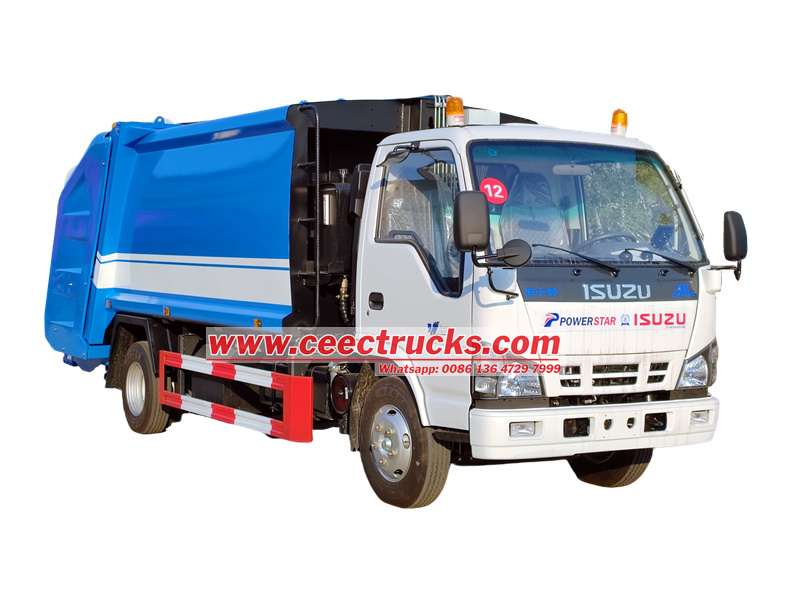

ISUZU NKR 8CBM garbage compactor truck

3. Reliability and maintenance convenience: The design of the ISUZU NKR chassis fully considers the convenience of maintenance, the layout of the engine compartment is reasonable, and the interfaces of each system are standardized, which is extremely beneficial for later modification and daily maintenance.

4. Chassis carrying capacity: From the technical parameters, the front axle carries 4300kg, the rear axle carries 7500kg, and the total mass is 7300kg, which provides sufficient structural bearing space for garbage truck modification. This means that a larger capacity compression box can be installed while ensuring the stability and safety of the whole vehicle.

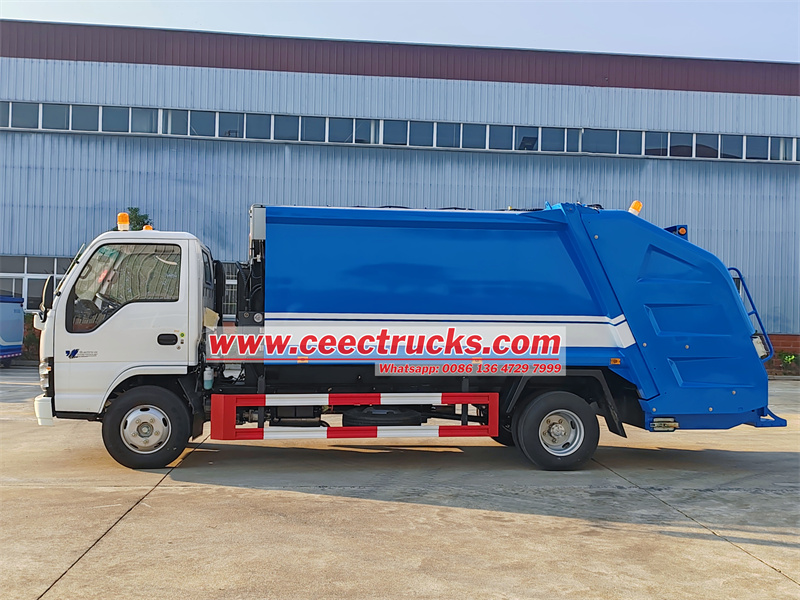

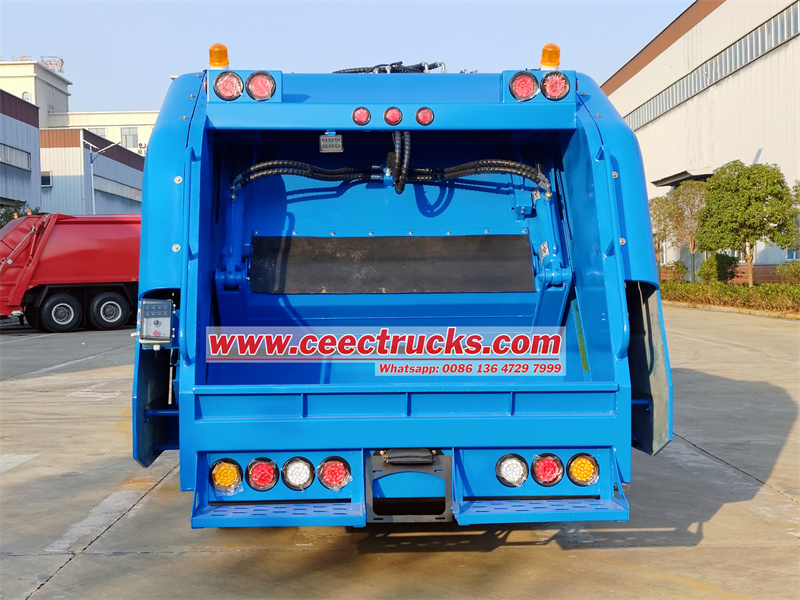

ISUZU NKR garbage compactor truck

5. Chassis modification compatibility: The modular design of the ISUZU NKR chassis provides great convenience for modification. The hydraulic system interface is standard and the electrical system is adequately reserved, making the special system integration of the compression garbage truck simple and fast.

6. Cost economy: Compared with other chassis of the same level, ISUZU NKR has obvious advantages in modification cost, fuel economy, maintenance cost, etc. The 70L fuel tank design, combined with the good fuel consumption performance of the engine, reduces operating costs.

ISUZU NKR garbage compactor truck
