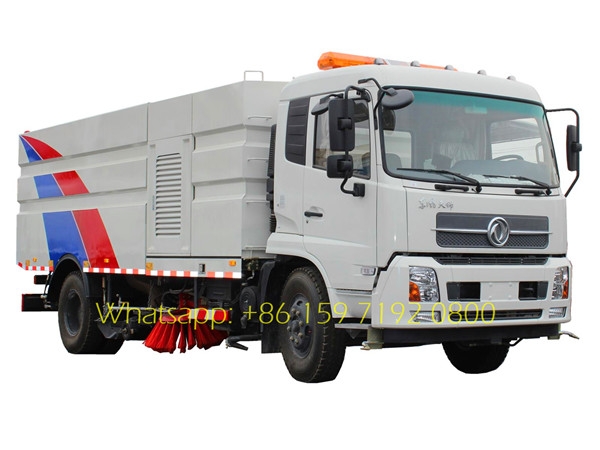

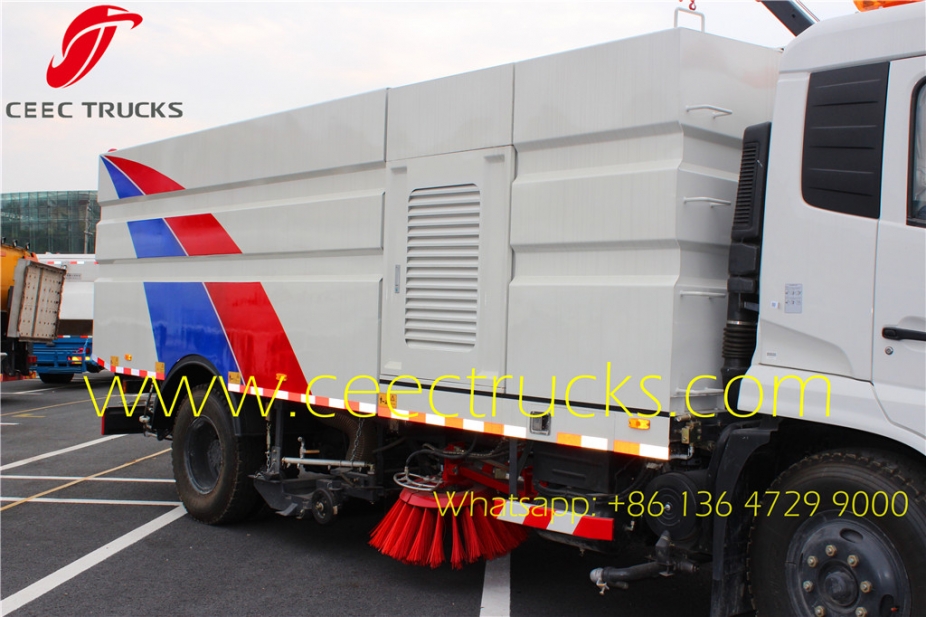

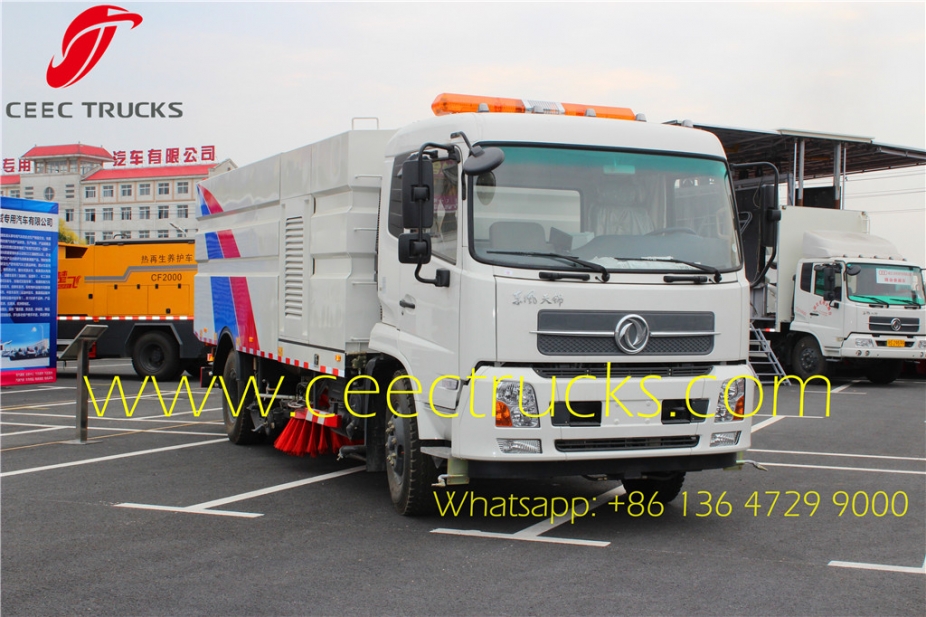

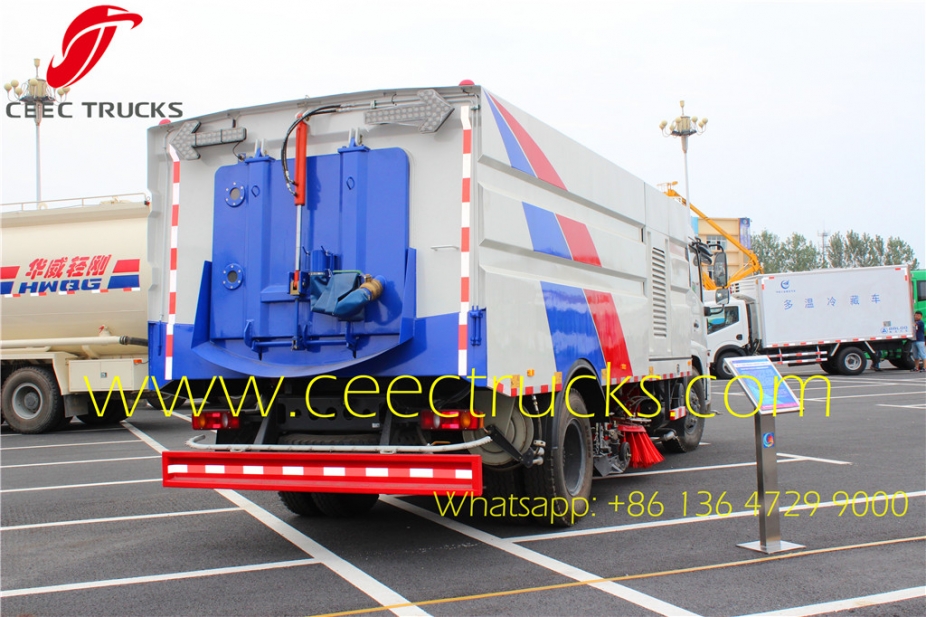

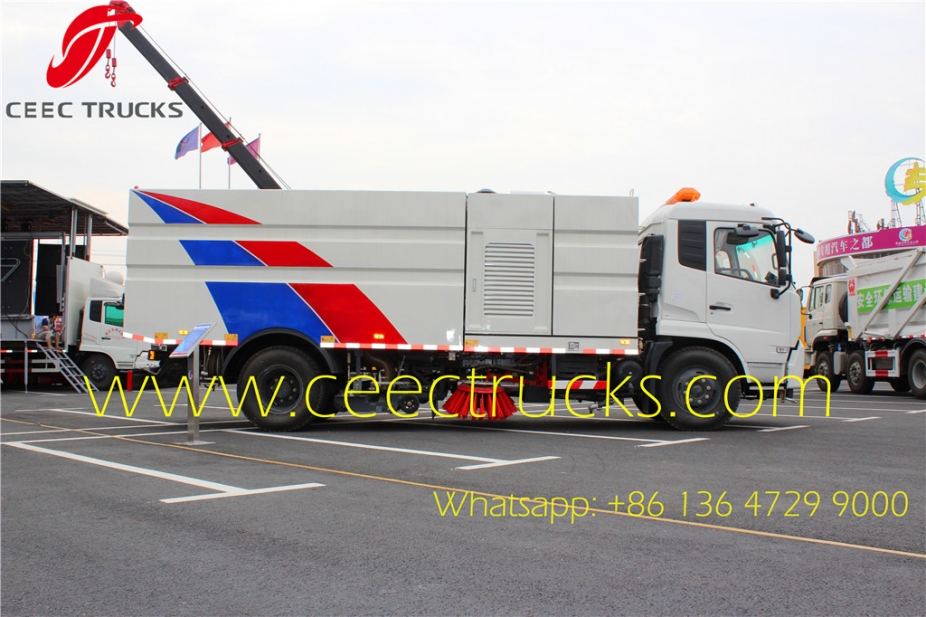

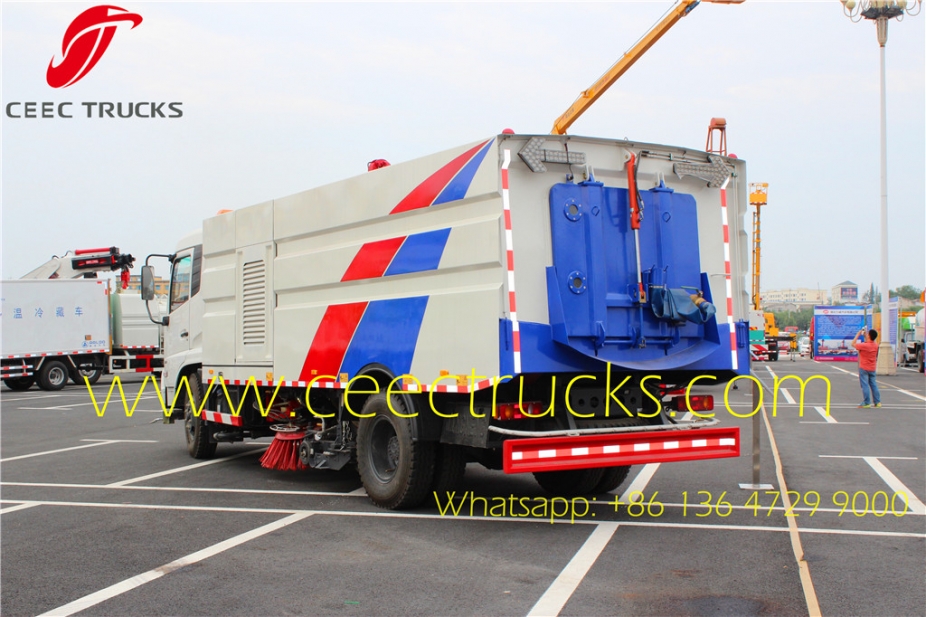

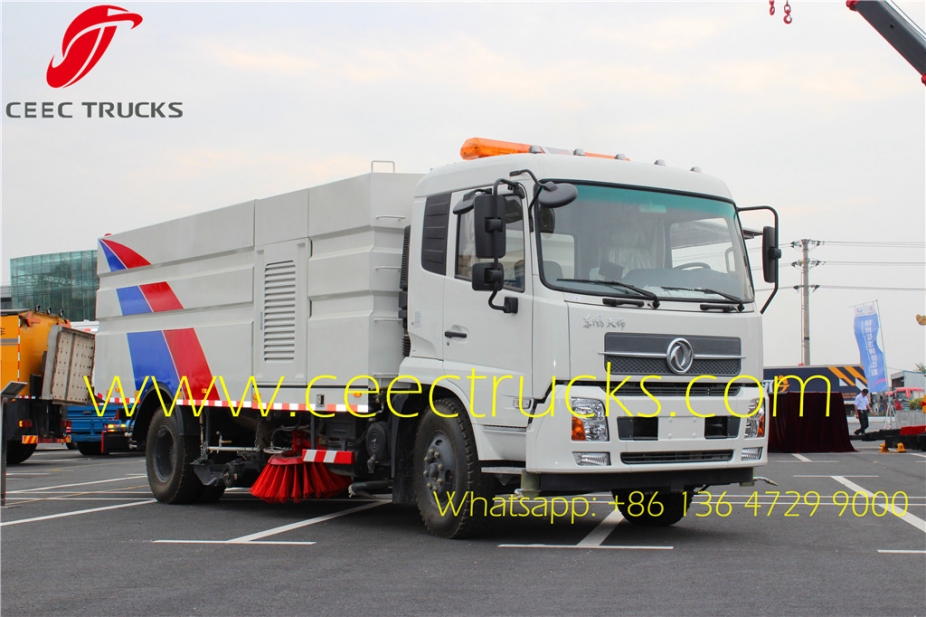

 Dongfeng 4*2 dry-type road sweeper/dust cleaner road sweeper  manufacturer

10 m³ Road Cleaning Truck DongFeng

10 m³ road sweeper truck, dongfeng 4*2 chassis, LHD and RHD model sale, totally 10 CBM capacity with 6CBM dust tank and 4CBM water tank, both use stainless steel material, widely export to Africa countries

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $38,000-52,000
  • Market Price:

    $46000
contact now
10 m³ Road Cleaning Truck Manufacturer supply



 DFAC road clean truck 10 CBM



2016 newly designed and produced Dongfeng 10CBM Road sweeper Truck can be widely used in sweeping city roads, highways, constructionsites, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface. And being export to Phillippine, Nigeri, Myanmar, etc



Technical Drawing for CEEC road sweeper truck



CEEC TRUCKS 2016 produced road sweeper trucks, including beiben heavy type road sweeper trucks,dongfeng vacuum sweeping trucks, ISUZU road Sweeper with lowest price are widely export Myanmar, Phillippine, Nigeria, Ecuador, Kenya and Zambia, etc. The Road sweeper heart Auxiliary use Japanese technology ISUZU 57KW engine with top performance; Whole tank including 6CBM dust bin tank and 2CBM cleaning water tank, all use stainless steel as material, longly extend the service life. Standard 4-brush sweeping system, each side has two, with sweeping width can be up to 3.2m.

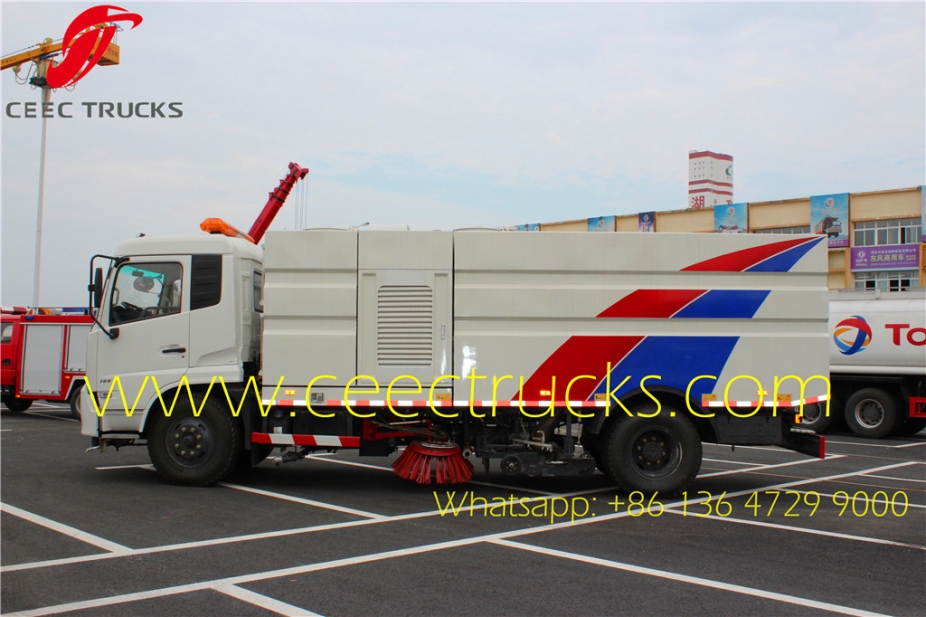

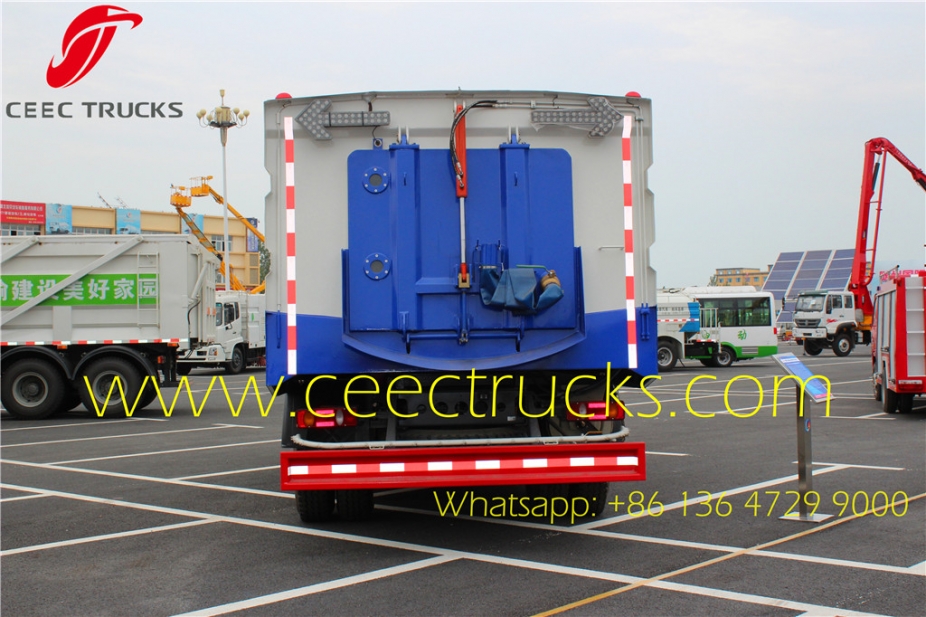

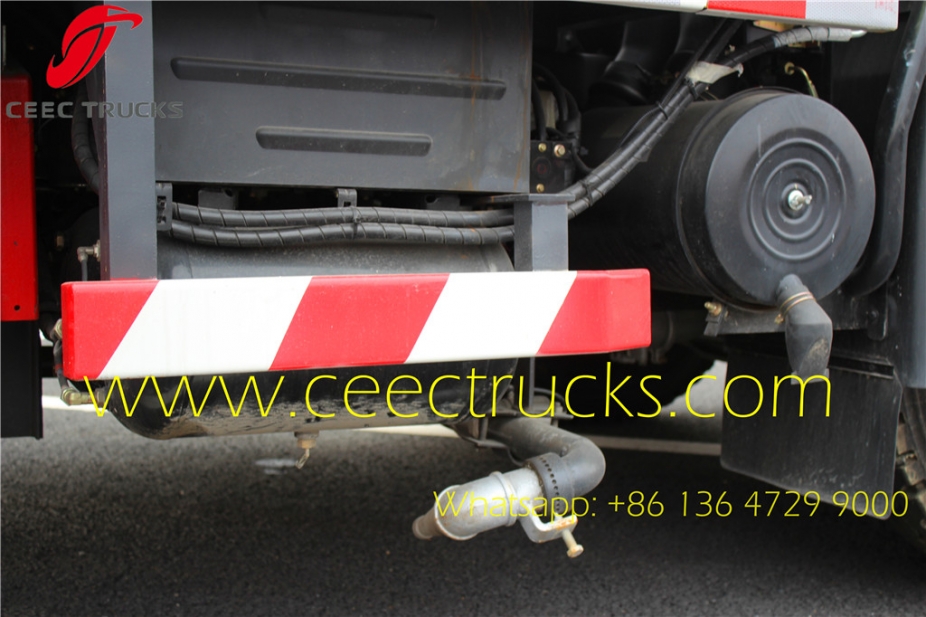

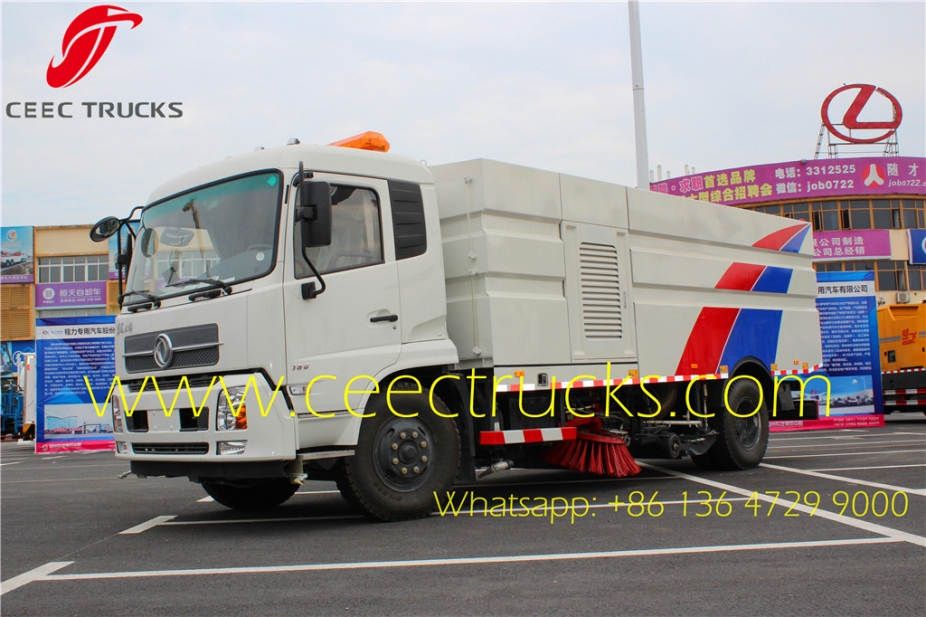

Dongfeng 10000 liters road sweeper trucks supplier



Dongfeng 10000 liters road sweeper trucks supplier



Dongfeng 10000 liters road sweeper trucks supplier



Dongfeng 10000 liters road sweeper trucks supplier



Dongfeng 10000 liters road sweeper trucks supplier



Dongfeng 10000 liters road sweeper trucks supplier    Dongfeng 10000 liters road sweeper trucks supplier



Dongfeng 10000 liters road sweeper trucks supplier    Dongfeng 10000 liters road sweeper trucks supplier



Dongfeng 10000 liters road sweeper trucks supplier    Dongfeng 10000 liters road sweeper trucks supplier



Similar Key Words: Dongfeng road sweeper, ISUZU road sweeper truck, beiben street sweeping vehicle, road cleaning truck, street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck


10CBM Road Cleaning Truck Dongfeng

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

Dongfeng

Overall Dimension

7880 * 2500 * 3150 mm

GVW / Kerb Weight

16,000kg / 10,200 kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

W/ air conditioner

Engine

Fuel Type

Diesel

Engine Brand

Cummins

Power

190 Ps (140 KW)

Displacement

5900 ml

Emission Standard

Euro III

Chassis

Drive Type

4X2, left hand drive

Transmission

6-speed front, 1 reverse

Wheelbase/No. of axle

4200 mm / 2

Tyre Specification

10.00-20

Tyre Number

6 tyres and 1 spare tyre

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Water Tank

Stainless Steel

Water Tank Capacity

4,000Litres (About 1,000 gallons)

Dustbin Material

Stainless Steel

Dustbin Capacity

6 CMB

Sweeping Capacity

42,000 m³/h

Sweeping Speed

3-15 km/h

Max Sweeping Width

2800mm

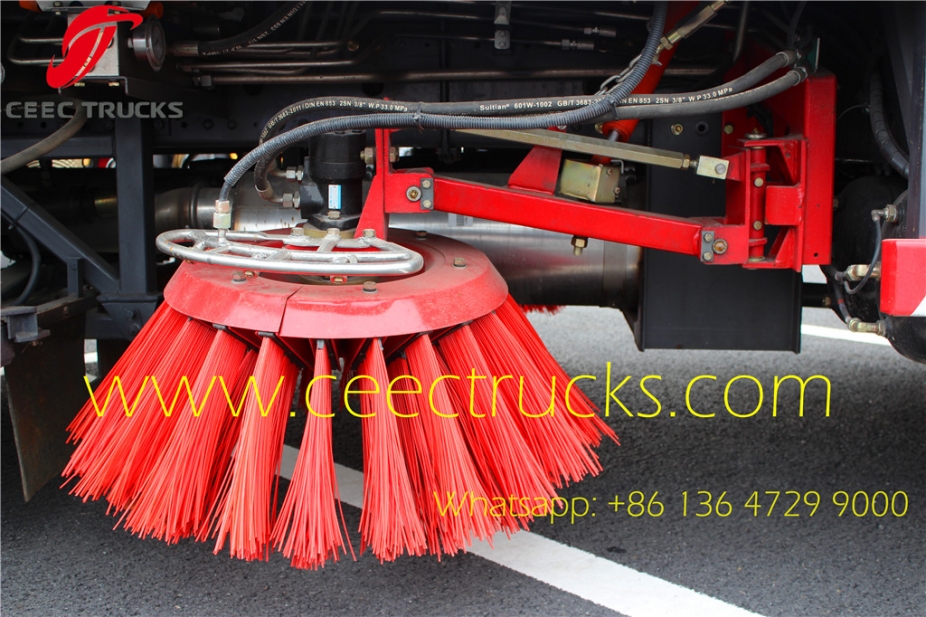

Brooms

2 sets at each side, at diameter 900 mm

Auxiliary Engine

JMC engine (ISUZU technology)
77 HP (57 KW), super powerful

All standard accessories: Warning lights, music alarm, basic tool kit, English manual……

Optional

** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.



Dongfeng 10000 liters road sweeper trucks supplier



2016 best selling model environmental protection truck hot sale




SaveSaveSave

1,Hghly wear-resistant automatic clutch drives the special fan to control the starting and stopping of the engine.

2,The imported hydraulic components were intergrated folded and conveniently controlled by the electrical and hydraulic system in the cab.

3,stainless steel water tank and material tank are combined and no remained water in the water tank when working .

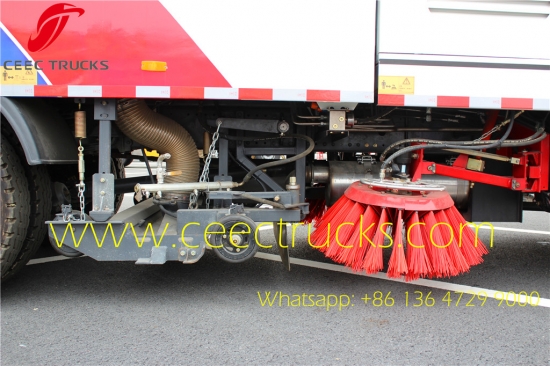

4,The sweeping device are hydraulic controlled and can avoid inter collision. Automaticlly.

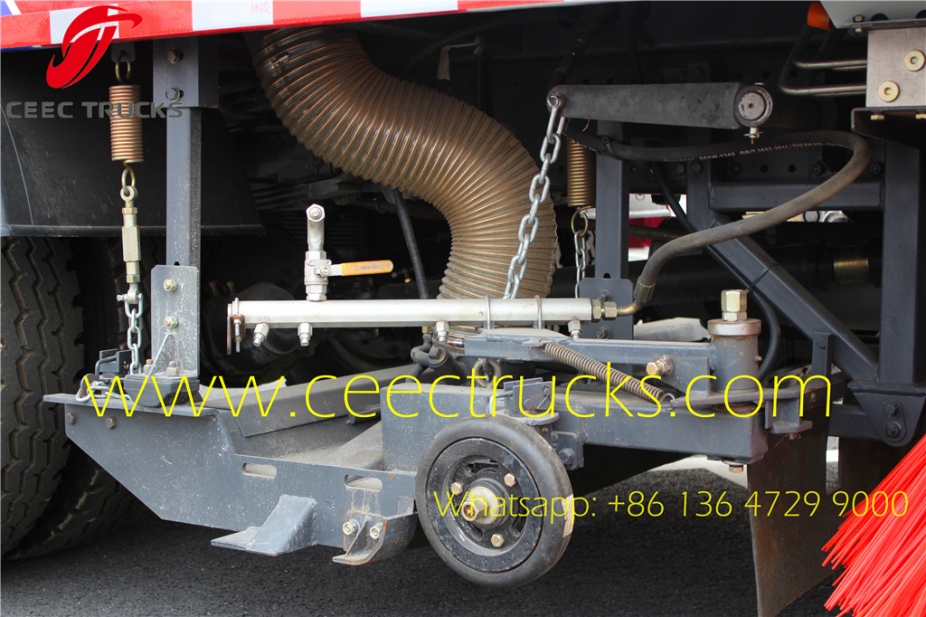

5,the postposition floating type suction nozzle have self-adjustment function to adapt to the bad road condition .And it is easy to debug and maintain..

6,the adjustable mist spray device can eliminate the second pollution as well as saving water.

7,streamline appearance ,low oil consumption,low noise.



Manufacturer sale Road Sweeper Truck low price



CEEC road sweeper trucks

(Previous export Road Sweeper Trucks by CEEC TRUCKS at factory low price)

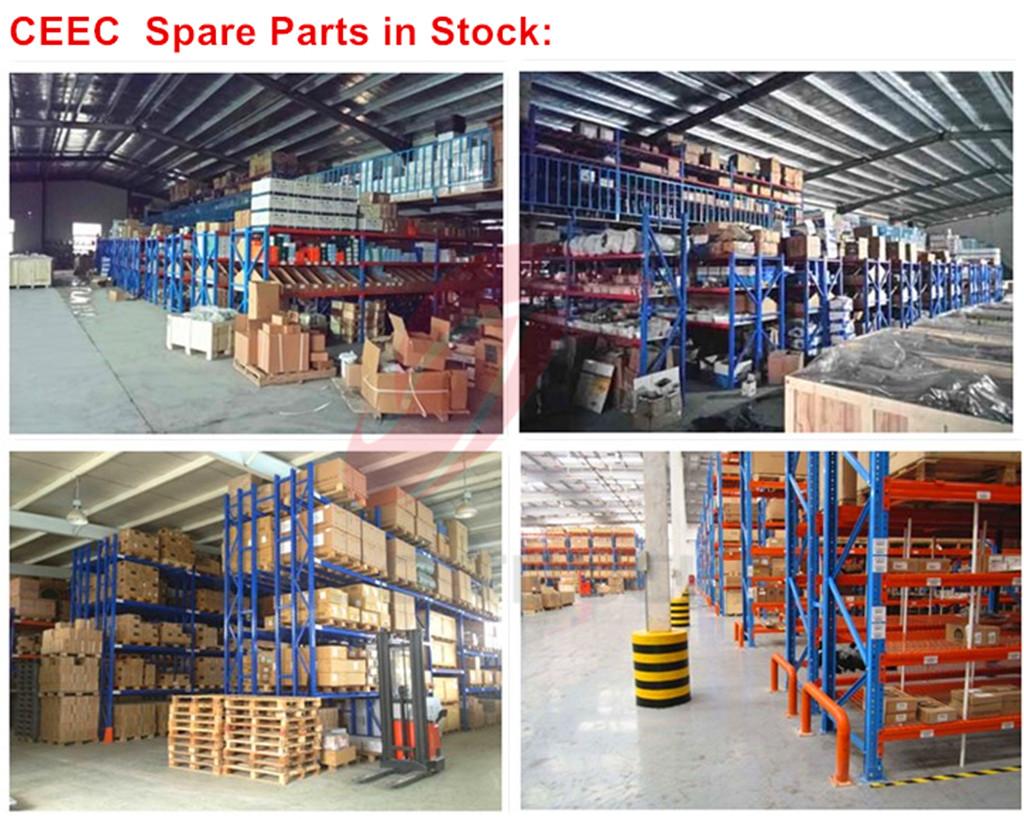

General SPare parts in factory stock
